Acorn NCs on modern servers

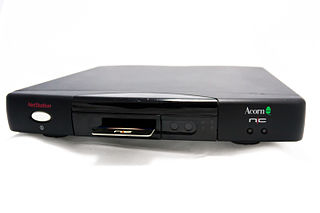

The Acorn Network Computer

This is an attempt to build a working server setup for my Acorn NCs.

NCs come in many variations and revisions, with different hardware and OS versions. This guide only deals with ethernet NFS machines.

Network TypeBoot Type
Modem
EthernetBoot with TopCat
EthernetBoot with NFS
In general we are following the instructions and using the base distribution given to Acorn Registerd Developers in 1998.

In this guide I will be creating a Linux virtual machine to act as the server for the NCs, though you could configure a real machine to act in the same way if you have one spare.

For your own network you will need to know the following IP addresses, the examples in the guide use the values in the brackets after it, you will have to adapt them to your own values as you progress.

  • The gateway of your network (192.168.0.1)
  • The DNS server of your network (192.168.0.1)
  • A free static IP address for your Network Computer (192.168.0.50)
  • A free static IP address for your NC Boot server (192.168.0.70)

The topology of an Acorn NC network
A diagram of the network used in this guide

A list of all things that need changing when using different IP adresses

  • On the NC Boot Server
  • Static IP configuration
  • /etc/exports (IP ranges of machines allowed to access NFS shares)
  • /home/ncd/boot/ncconfig/106/setupnet (gateway, dns resolver, netmask, timeserver)
  • /home/nds/boot/etc/passwd (IP address of NC boot server)
  • On the Network Computer
  • Static IP address and netmask
  • Gateway
  • DNS Server
  • Boot server

Create and Configure the NC Boot Server virtual machine

We will use Oracle Virtual Box to create a virtual machine to be the NC Boot Server.

Create a new machine and select the following options;

  • Ubunutu 64 bit
  • 4096MB RAM
  • 20GB HD
  • Networking 'Bridged' with the relevant host adapter

Download an ISO of Xubuntu 22.04, which is an LTS (Long Term Support) version with support until 2025.

Install in the usual manner, picking these choices;

  • 'Minimal Installation' is fine (it still contains a gui)
  • 'Download updates while installing'
  • 'Install third-party software

Set a static IP address in you host range

The simplest way to do this is to log in with the user you created during installation, and use the GUI tool to configure the network. (From the top right icon in the desktop).

Install a network time server (NTP)

The network computers do not have clocks on board, as such they must fetch their time over the network from a server, we will use our Network Computer Boot server to do this.

apt install ntp ntpdate

Verify you get a response with

ntpdate -q 127.0.0.1

Check server is running with

systemctl status ntp
netstat -an

And make sure entries for port 123 are present

Install and configure the NC Server Software

Create a new user 'ncd' to hold the base distro.

adduser ncd

Set a known password and ignore all the other questions about details.

Login as ncd and uncompress the nc distro

wget https://4corn.co.uk/archive/Acorn_Developer_Site/reference/nc/unixbeta/base/120398.tar.gz
wget https://4corn.co.uk/archive/Acorn_Developer_Site/reference/nc/unixbeta/unix/180398.tar
tar xvfz 120398.tar.gz
tar xvf 180398.tar

Login as Root

chmod -R nobody:nogroup /home/ncd/boot

Setup NFS server

apt install nfs-kernel-server

Edit /etc/exports

Add line

/home/ncd/boot	192.168.0.0/255.255.255.0(rw,all_squash,sync,insecure)

Edit /etc/nfs.conf

Find the section [nfsd] and uncomment/alter the following lines

udp=y
vers2=y

Reboot the NFS server to pick up the new configuration

service nfs-kernel-server restart

Make changes to the default Network Computer NFS boot distribution

Edit /home/ncd/boot/ncconfig/106/setupnet

Change the route to match your gateway

bin:route -e add net default 192.168.0.1 1

Change the DNS resolvers to match your DNS servers

set inet$resolvers 192.168.0.1
set inet$localdomain local

Change the netmask to match your network, this is a 32bit Hex netmask, e.g. this example is 255.255.255.0

bin:fixnetmask 0xffffff00

Change the ntp timeserver to point at out NC Boot Server

set inet$timeserver 192.168.0.70

Edit /home/ncd/boot/!nfsboot/!run,feb

Insert these hack lines after RMEnsure OSVersion 1.06 basic

| HACK force boot v106
set OS$Version 106

Compile and install the PCNFSD authentication program

Network computers use a service called rpc.pcnfsd to authenticate users for access to the network shares on the NC Boot Server. This program is now largely deprecated and not included in standard Linux distributions for more than 15 years. As such we will compile a version from the source code included in the Acorn NC distribution.

As root install the tools needed to build the program

apt install build-essential
apt install libtirpc-dev

Prepare and alter the source, so it builds on newer machines

cd /home/ncd/pcnfsd
mkdir pcnfsd
cd pcnfsd
tar xvfz ../pcnfsd.tar.gz
mkdir svr4

cp Makefile.svr4 Makefile.linux

Edit Makefile.linux

Change CFLAGS to

CFLAGS = -DOSVER_LINUX -Wno-endif-labels -I/usr/include/tirpc

Change LIBS to

LIBS = -ltirpc -lcrypt

Change LFLAGS to

LFLAGS =

Edit pcnfsd_svc.c

Change line 444 to:

actual = *(struct sockaddr_in *) svc_getcaller(caller);

Edit common.h

At line 293 create a section

#ifdef OSVER_LINUX
#define BSD_STYLE_PRINT
#define BSD_STYLE_PR_LIST
#define BSD_STYLE_QUEUE
#define BSD_STYLE_CANCEL
#define BSD_STYLE_STATUS
#define BSD_STYLE_MONITOR
#define SHADOW_SUPPORT
#endif

Edit pcnfsd_misc.c

change line 58 to

extern char tempstr[256];

Build the program

make -f Makefile.linux

This should create the program in the svr4 subdirectory svr4/rpc.pcnfsd

Install the program

As root

cp /home/ncd/pcnfsd/pcnfsd/svr4/rpc.pcnfsd /usr/sbin

Create a systemd service to run rpc.pcnfsd on startup

Edit /etc/systemd/system/pcnsfd.service

Insert the the following content

[Unit]
Description=Starts PCNFSD service
After=rpcbind.service
[Service]
Type=oneshot
RemainAfterExit=true
ExecStart=/usr/sbin/rpc.pcnfsd
[Install]
WantedBy=multi-user.target

Then change the permissions of the service, start it running and configure it to start on system startup.

chmod 664 /etc/systemd/system/pcnfsd.service
systemctl daemon-reload
systemctl enable pcnfsd.service

Create a user account for the NC user

We create users on the NC Boot Server to store their files. In this example we set up one user called ncdemo but you can add as many as you wish.

As root

adduser ncdemo

Give them a password here.

cp -r /home/ncd/eguser /home/ncdemo/nchome
chown -R ncdemo:ncdemo /home/ncdemo/nchome

HACK test chmod a+r /home/ncdemo/nchome

Edit /home/ncd/boot/etc/passwd

Add a line

ncdemo 192.168.0.70 /home/ncdemo/nchome ncdemo

Edit /etc/exports

Add a line

/home/ncdemo/nchome	192.168.0.0/255.255.255.0(rw,sync,no_subtree_check,insecure)

Restart the NFS server to load the new config.

systemctl restart nfs-kernel-server

Configure the NC

In theory you could configure the server to handle BOOTP (an earlier form of DHCP) requests from the client to automatically configure the Network Computer to boot, but for now we will configure the NC with a static IP address.

On the NC, plug in a PS2 keyboard, on startup press both Alt keys simultaniously to enter a configuration mode.

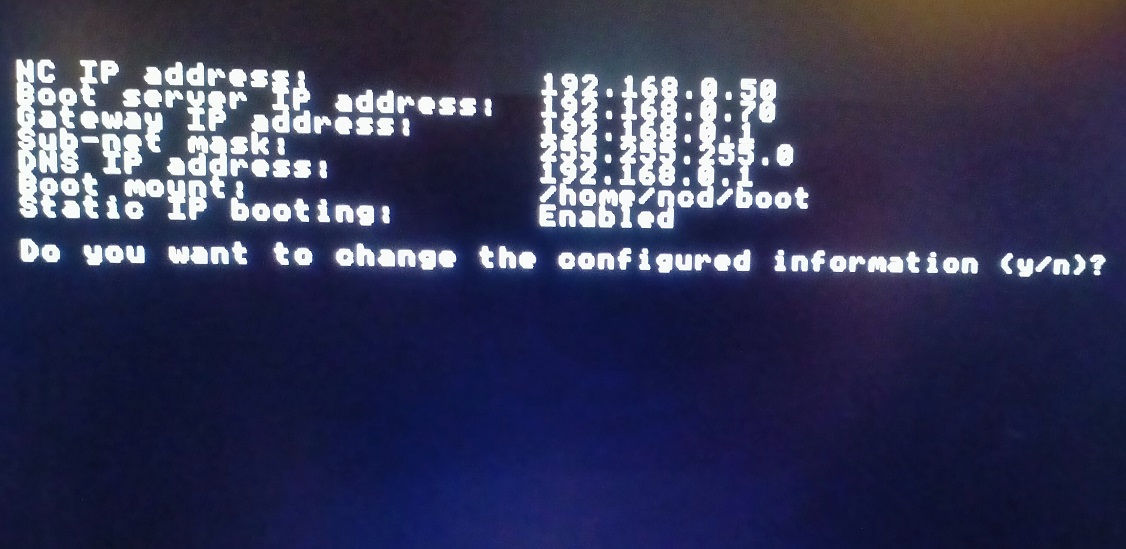

Configure client

NC IP address:            192.168.0.50
Boot server IP address:   192.168.0.70
Gateway IP address:       192.168.0.1
Sub-net mask:             255.255.255.0
DNS IP address:           192.168.0.1
Boot mount:               /home/ncd/boot
Static IP booting:        Y
